Botslab PT Battery Wi-Fi Camera W313 Quick Start Guide

Packing list

Upon opening the package, please check for any damage to the main unit and ensure all accessories are present.

Camera Packing List

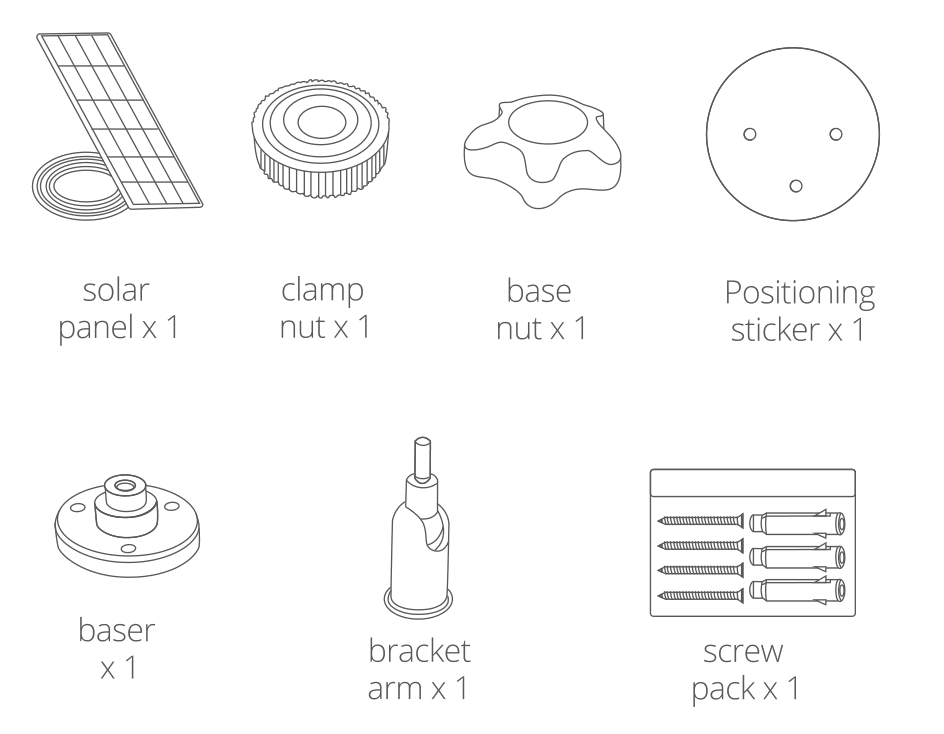

Solar Panel Packing List

The product and accessory illustrations in the Quick Start Guide are schematic diagrams for reference only.

Product Appearance

Memory card: Maximum 256 GB

Guideline for Connecting to the Network

Download and Installation of the App

Method 1: Scan the QR code below with your mobile phone to download and install the Botslab APP.

Method 2: Search and download the Botslab APP from App Store or Google Play, and then install it.

Connection Guide

Before using the app to add the camera, please press and hold the POWER button for 3 seconds to turn it on.

If the indicator light slowly flashes red, this indicates that the dome camera is ready and can be set up.

Add the Device

Open the Botslab app and click the Register button to register a Botslab account. If you already have an account, click the “Login” button, and enter your account and password to log in.

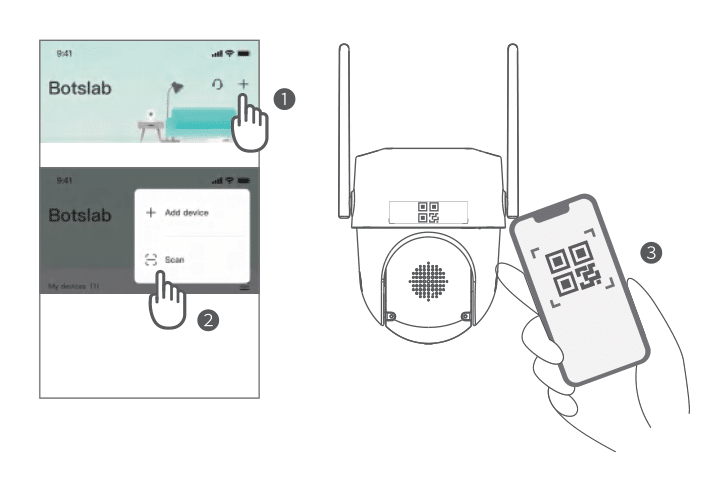

Method 1: After logging in, click the “+” button in the upper right corner of the homepage, select “Scan”, and then use your phone to scan the QR code on the camera to access the network configuration page. Follow the prompts to add the camera.

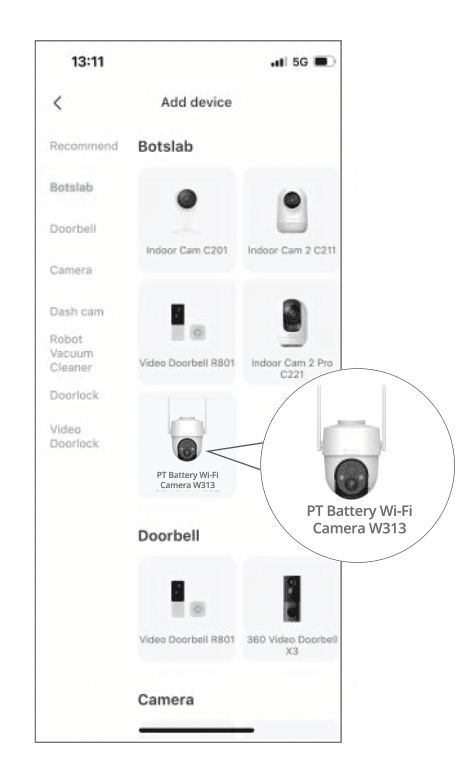

Method 2: After logging in, click the “+” button on the upper right corner of the app’s homepage to add a camera by the model.

Please make sure the environment is quiet when pairing the sound waves.

Make sure that the camera is connected to WiFi in the 2.4GHz frequency band.

Installation Guide

Camera Installation:

Wall-mounted:

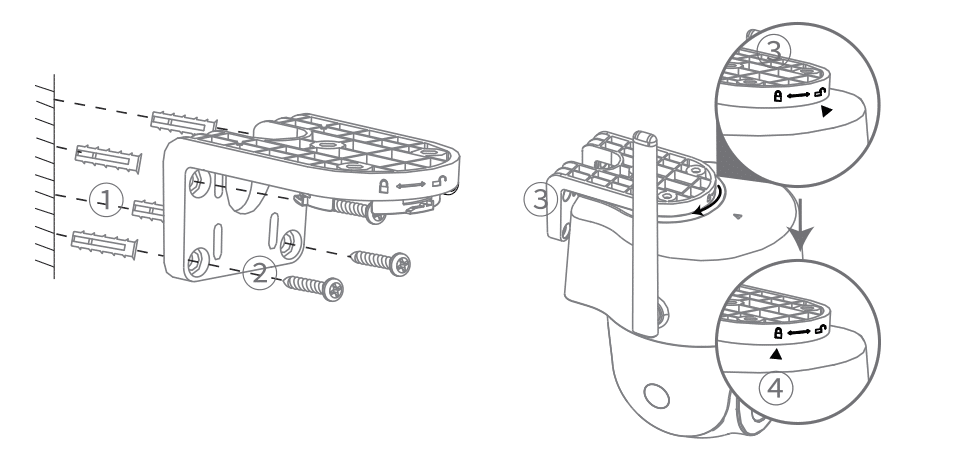

1. Attach the positioning sticker to the wall and drill a hole according to the position shown in the diagram.
2. Insert the expansion bolt into the wall at the positioning sticker’s hole position.
3. Fix the bracket base with screws.
4. Align the camera with the slot, push it upwards into the fastened bracket, and rotate the camera until it aligns with the positioning mark on the wall bracket.

Suspension:

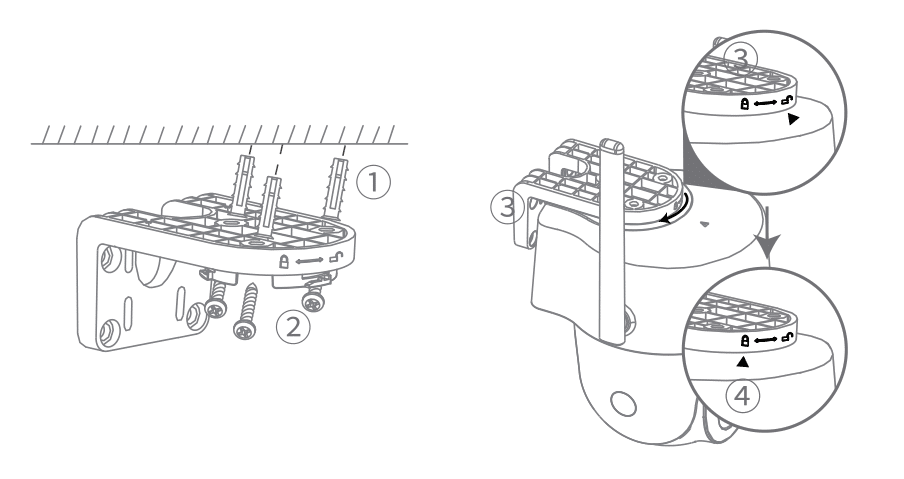

1. Attach the positioning sticker to the wall and drill a hole according to the position shown in the diagram.
2. Insert the expansion bolt into the wall at the positioning sticker’s hole position.
3. Fix the bracket base with screws.
4. Align the camera with the slot, push it upwards into the fastened bracket, and rotate the camera until it aligns with the positioning mark on the wall bracket.

Pay attention to outdoor lightning protection measures.

Installation of Solar Panels:

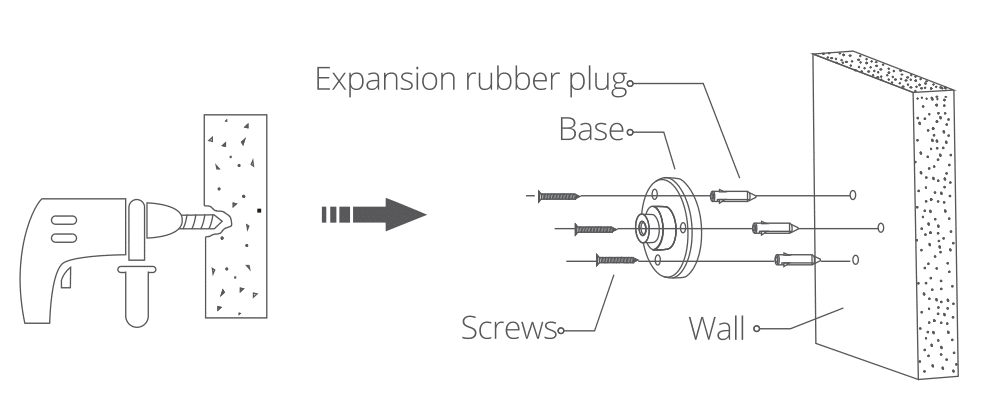

1. Use the included screws to fasten the base to the installation position. If the installation surface is soft or unstable, first drill a hole on the wall with a 6.0 drill bit, then insert the expansion rubber plug into the hole, and secure the base with screws.

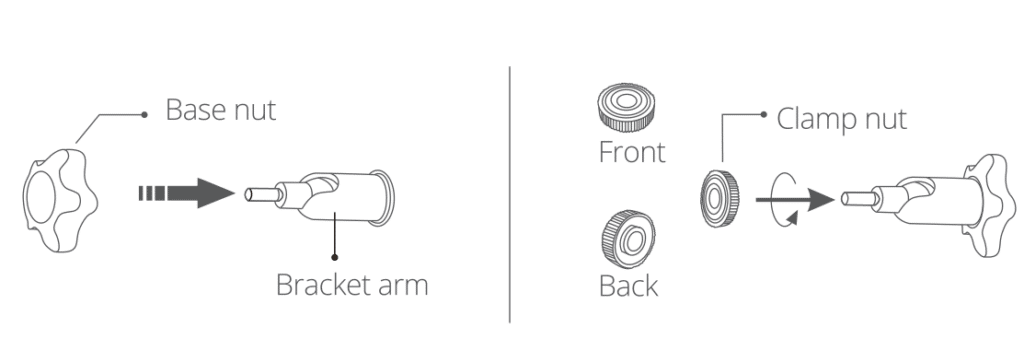

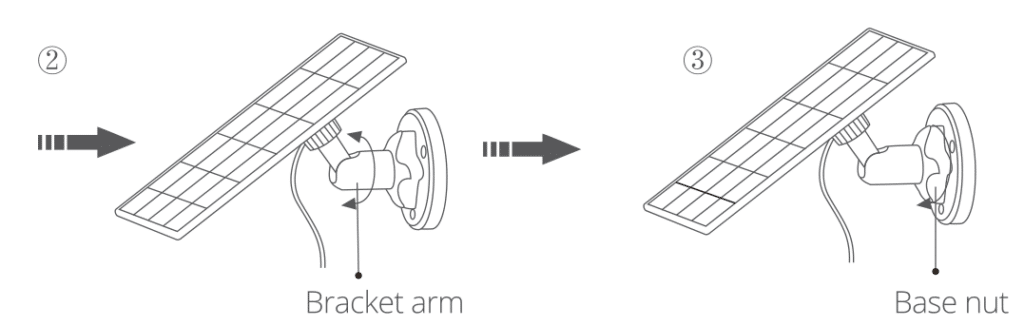

2. First, insert base nuts into the bracket arm, and then fasten the circular clamp nut into the bracket arm.

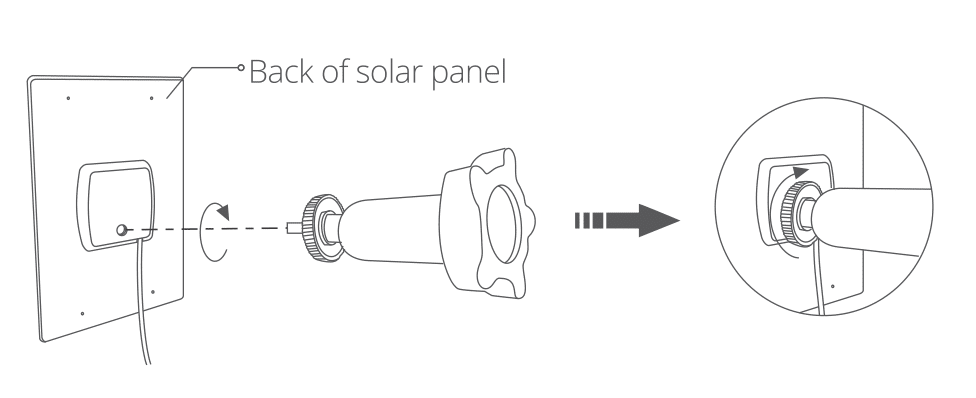

3. Securely attach the bracket arm to the back of the solar panel using the provided screws.

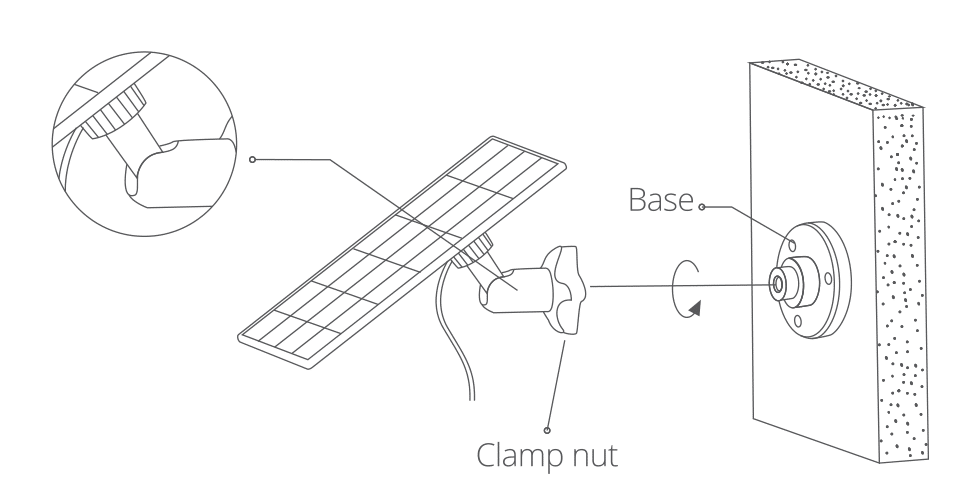

4. Screw the clamp nut into the base, and make sure that the bracket arm is tilted upwards.
5. When adjusting the solar panel’s position horizontally, please loosen the clamp nut, rotate the bracket arm, and tighten the clamp nut after putting the solar panel in the desired position.
6. The tilt angle of the solar panel can be adjusted vertically, with a maximum angle of 90°.

After installation, please check all locking components to ensure they are securely fastened.

Please use a soft damp cloth to wipe the surface of the solar panel on a regular basis, in order to remove dust or debris.

How to adjust the orientation of solar panels:

1. Find the location with the most direct sunlight during the day.
2. Tilt the solar panel upwards by 30°.
3. If you are in the northern hemisphere, point it southwards; if you are in the southern hemisphere, point it northwards.

Camera and Solar Panel Installation and Connection:

Insert the solar panel connection cable into the camera’s type-C power port.

Precautions

1. To achieve better night vision imaging results, keep the lens front or side away from reflective objects such as glass and white walls. This will prevent nearby objects from appearing too bright while distant objects may appear dark or white.
2. Place the device in a location with good network signal reception and keep it away from metal objects (such as metal brackets, metal doors, and windows) or other sources of signal interference.
3. It is normal that the equipment generates heat during operation.
4. This product is designed to operate within a temperature range of -20°C to +50°C. Do not use this product in environments that are too hot or too cold.

Working Status Description

The manufacturer reserves the right to adjust the product’s functional status through firmware upgrades or software adjustments.
