Packing list
Please check whether the main unit and all accessories are complete upon unpacking.
Product Appearance
Reset hole: When the camera is powered on, press the reset hole with the inject pin for 5 seconds, and the “Di” sound indicates a successful reset.
Memory card: Maximum storage of 256 GB
Network configuration instructions
Download and install the APP
Method 1:Scan the QR code below with your mobile phone to download and install the Botslab APP.
Method 2 : Search for and download the Botslab app from the App Store or Google Play, and then install it.
Connect to a power
Connect the camera to the power adapter. After the camera is turned on, the status indicator light is “flashing green,” indicating that the device enters the network setup state and awaits being added.
Note: The status indicator light is not flashing green; please reset the device now. Please use the original power adapter that comes with the camera.
Add camera
Launch the Botslab APP, tap the “Sign up” button, and start creating your account. If you already have an account, please log in directly and add a camera.
Method 1:Tap the “+” button in the upper right corner ofthe APP homepageto “Add Device”, tap the “Camera” button, tap and select the “OutdoorPan/Tilt Camera Pro W312” icon to enter the distribution page, and add thecamera as instructed.

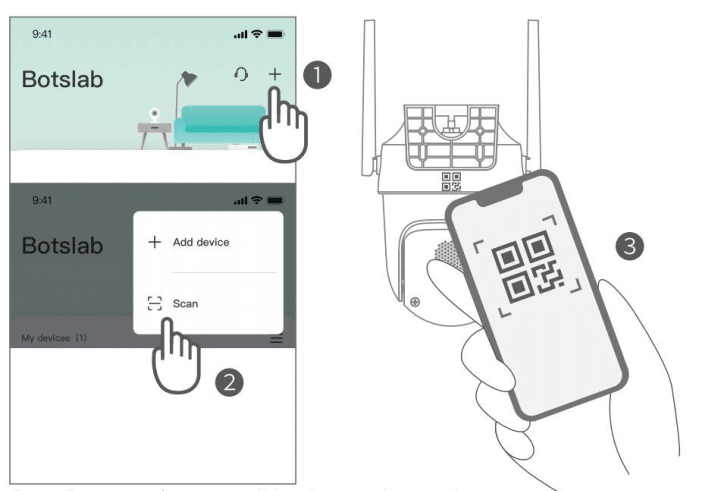

Method 2: Tap the “+” button in the upper right corner of the APP homepage to “Scan” the code, then use your mobile phone to scan the QR code at the bottom of the camera to enter the distribution page and add the camera as instructed.
Notice:
Complete the sound wave pairing in a quiet environment.
Support network cable connection.
When using a WiFi connection, please ensure that the camera is connected to a Wi-Fi network in the 2.4GHz/5GHz frequency band.
Installation Guide
Insert a Micro SD card (optional).
Open the waterproof card cover with a screwdriver, and insert the Micro SD card. Log in to the Botslab app for initialization before using it.
Wall-mounted Installation
The camera supports both ceiling and wall-mounted installation. After selecting an appropriate installation method and location, securely affix the installation sticker. Drill holes and install the expansion pipe, then fasten the wall bracket with screws.
Align the card slot and push the camera upward into the fixed bracket, rotating it until it aligns with the wall bracket positioning marks.
Precautions:
Please ensure that the camera has been successfully added before proceeding with the wall installation.
The wall surface where the camera is installed must be able to support the combined weight of the camera and wall bracket at least three times.
Install a waterproof kit (optional)

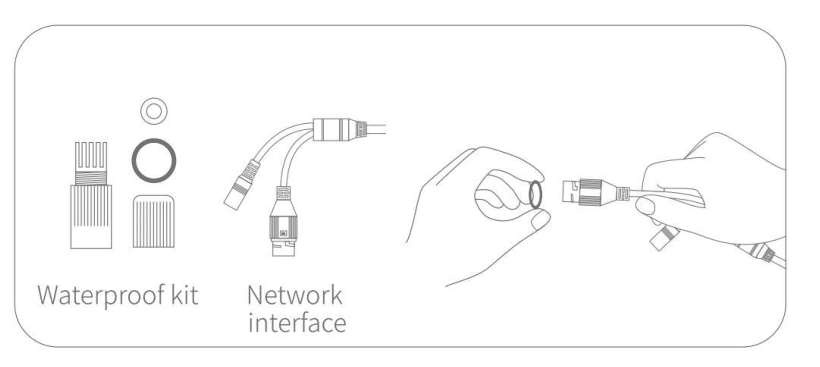

Before installation, inspect the waterproof kit items and place the waterproof rubber ring on the camera’s network interface.

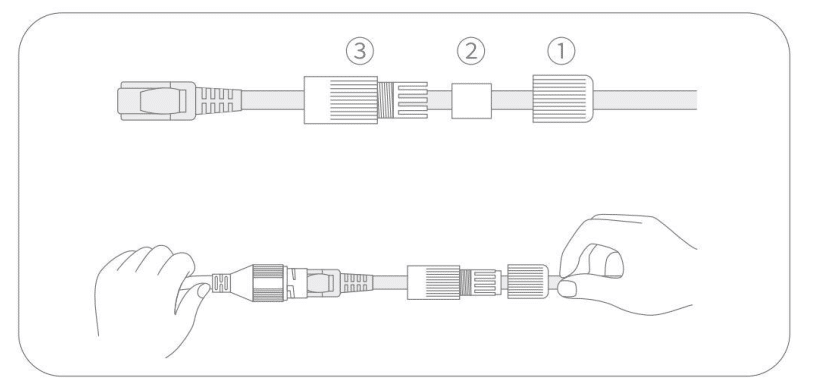

Thread the waterproof kit through the network cable one by one and connect the network cable to the network interface.
Tighten the waterproof kit at the camera’s network interface first and then screw the locking bolt.
After the installation is completed, connect the camera to the power source again. After startup, the camera will automatically connect to the pre-configured network.
Precautions:
The camera’s waterproof kit can effectively prevent rainwater from seeping into the network interface. Failure to install it properly may result in equipment damage, which is not covered by the after-sales warranty service.
Notes
- For better night vision imaging, do not use the camera with the front or side of the lens near reflective materials such as glass and white walls; otherwise, the images of things nearby will be rendered bright, while those far away are dark or even white.
- Try to place the device in a place with good network signal reception. The distance between the device and metal objects (e.g., metal supports, metal doors, and windows) or other signal interference sources should not be too close.
- Do not place the device near the heat source, e.g., electric heater, oven, or stove fire.
- The applicable working temperature of this product is -20°C-+60°C. Please do not use it in an environment where the temperature is too high or too low.
- Please do not use this product in an environment that is excessively humid and may cause water ingress.
