Packing list
Please check whether the main unit and all accessories are complete upon unpacking.
Due to ongoing updates and iteration of the product, there may be slight differences between the physical and schematic diagrams. Please refer to the actual products for the most accurate information.
Product Appearance
Memory card: Maximum 256GB
Guideline for Connecting to the Network
Download and install the APP
Method 1: Scan the QR code below with your mobile phone to download and install the Botslab APP
Method 2: Search for and download the Botslab app from AppStore or Google Play, and then install it.
Connection Guide
Before using the app to add a camera, please refer to the following diagram and connect the camera according to the prompts below.
Connect the camera to the power supply.
If the indicator light slowly flashes green, this indicates that the device is ready for setup. lfthe indicator light doesnot flash green slowly, please press and hold the Resetbutton at the bottom of the camera for 3 seconds. Once you hear a “beep” sound, it indicates that the network configuration information has been cleared, and you can proceed with the next step.
Add the Device
Open the Botslab app and click the Register button to register for a Botslab account. If you already have an account, click the”Login” button and enter your account and password to log in.
Method 1
After logging in, Bluetooth will automatically search for the camera by default. Once the camera is found, add the device according to the prompts.
When connecting to the network, please make sure that Bluetooth is enabled on the mobile phone and that the WiFi is properly connected.
Method 2
After logging in, click the “+” button on the upper right corner of the homepage, select “Scan,” and use your mobile phone to scan the OR code on the camera. This will direct you to the network setup page. Follow the prompts to add the camera.
Method 3

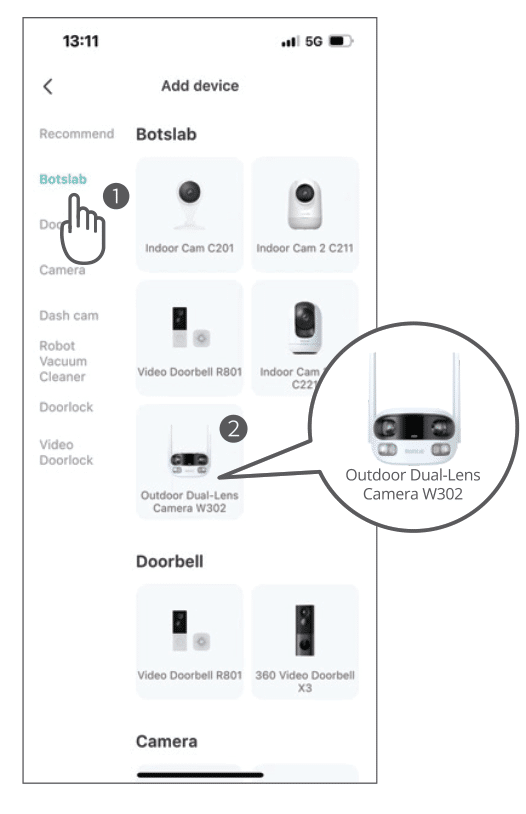

After logging in, click the “+” button in the upper right corner of the APP homepage and add the”Botslab OutdoorDual-Lens Camera W302″ by model.
Installation Guide
Installation method
- Please use the original adapter to prevent overvoltage and overcurrent from damaging the product.
- Pay attention to outdoor lightning protection measures.
Antenna installation and Adjustment
When the antenna is parallel to the camera, it can affect signal reception.
Installation Bracket
- Attach the positioning sticker to the wall and drill a hole according to the position shown in the diagram.
- Insert the expansion bolt into the wall at the positioning sticker’s hole position.
- Fix the bracket base with screws.
Installation of the Camera
1. Rotate the camera body and screw it into the bracket. Adjust the camera position and view the image’s fixed position through the app.
2. Tighten the bracket by rotating the nuts and bracket base.
3. Adjust and unfold the antenna to the appropriate position.
Precautions
1. To achieve better night vision imaging results, keep the lens front or side away from reflective objects such as glass and white walls. This will prevent nearby objects from appearing too bright, while distant objects may appear dark or white.
2. Place the device in a location with good network signal reception and keep it away from metal objects (such as metal brackets, metal doors, and windows) or other sources of signal interference.
3. It is normal that the equipment generates heat during operation.
4. This product is designed to operate within a temperature range of -20’C to +60°C. Do not use this product in environments that are too hot or too cold.5. Please use the original power cord to ensure the safety of the power supply and a good user experience.
