Packing list
Please check whether the main unit and all accessories are complete upon unpacking.
Product Appearance
Reset hole: When the camera is powered on, press the reset hole with the thimble for 5 seconds, and the “Di” sound indicates a successful reset.
Memory card: Maximum storage of 256 GB
Network configuration instructions
Download and install the APP
Method 1: Scan the OR code below with your mobile phone to download and install the Botslab APP.
Method 2: Search and download the Botslab APP from the App Store or Google Play, and then install it.
Connect to a power
Find the power socket on the bottom of the product and connect it to a power supply. When the product status indicator lights up in flashing green, it indicates that the camera is powered on for network configuration. Note: lfthe status indicator lights are not flashing green, reset the devicenow.
Add camera
Launch the Botslab APP, tap the “Sign up” button, and start creating your account. If you already have an account, please log in directly and add a camera.
Method: Tap the “+” button in the upper right corner of the APP homepage to “Scan” the code, then use your mobile phone to scan the QR code at the bottom of the camera to enter the distribution page and add the camera as instructed.
Note:
Complete the sound wave pairing in a quiet environment.
Please make sure the camera is connected to a 2.4GHz Wi-Fi.
Installation guide

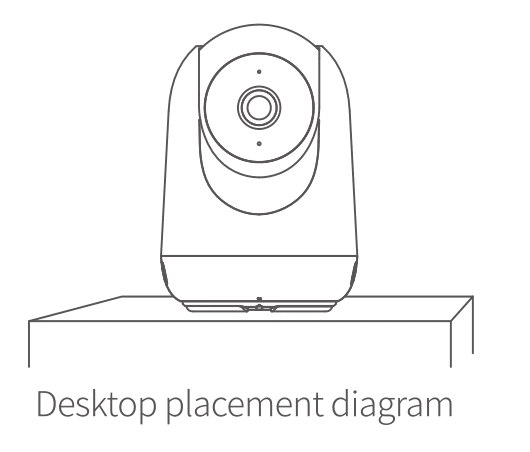

Method 1: On a table.
The camera can be placed on the leveled surface of a desk, table, tea table, etc.

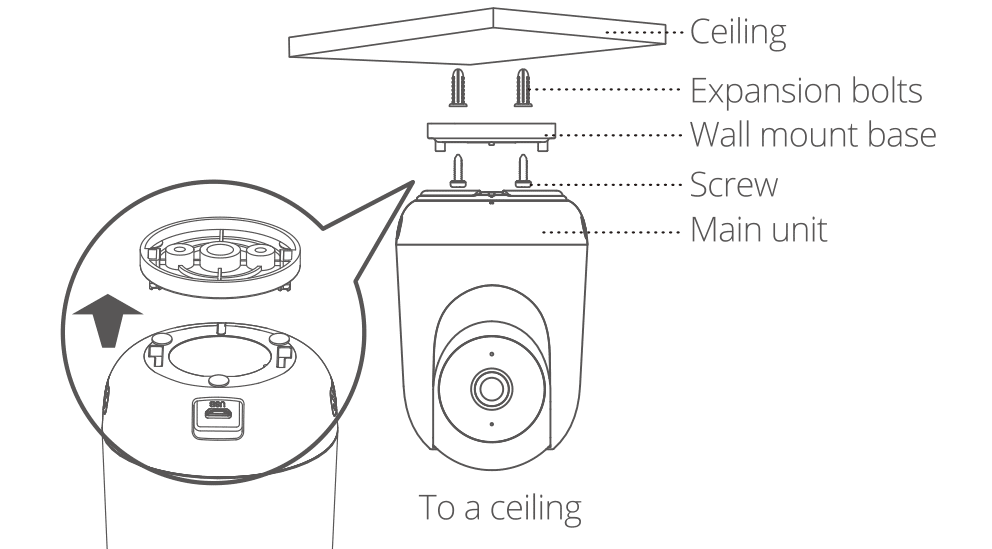

Method 2: To a ceiling
Drill holes in the ceiling and install expansion bolts, and fix the base on the wall with screws.
Align the fixing groove at the bottom of the camera with the buckle on the base and gently push it in until it cannot be pushed to complete the installation.
Notes:
Please start (ceiling mount/installation after you have added the camera
The ceiling for mounting must be able to bear at least 3 times the total weight of the camera and the base.
Please rotate the picture for ceiling-mount installation: Settings – Imagenight vision and sound -Rotate image -Inverse camera.
